Overview

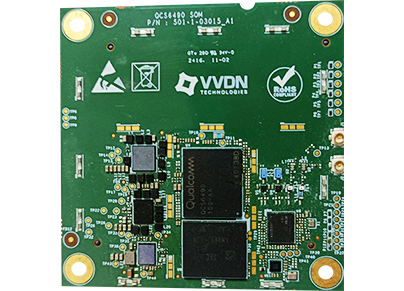

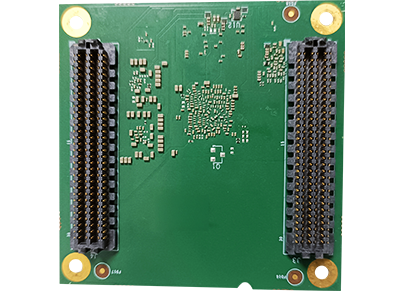

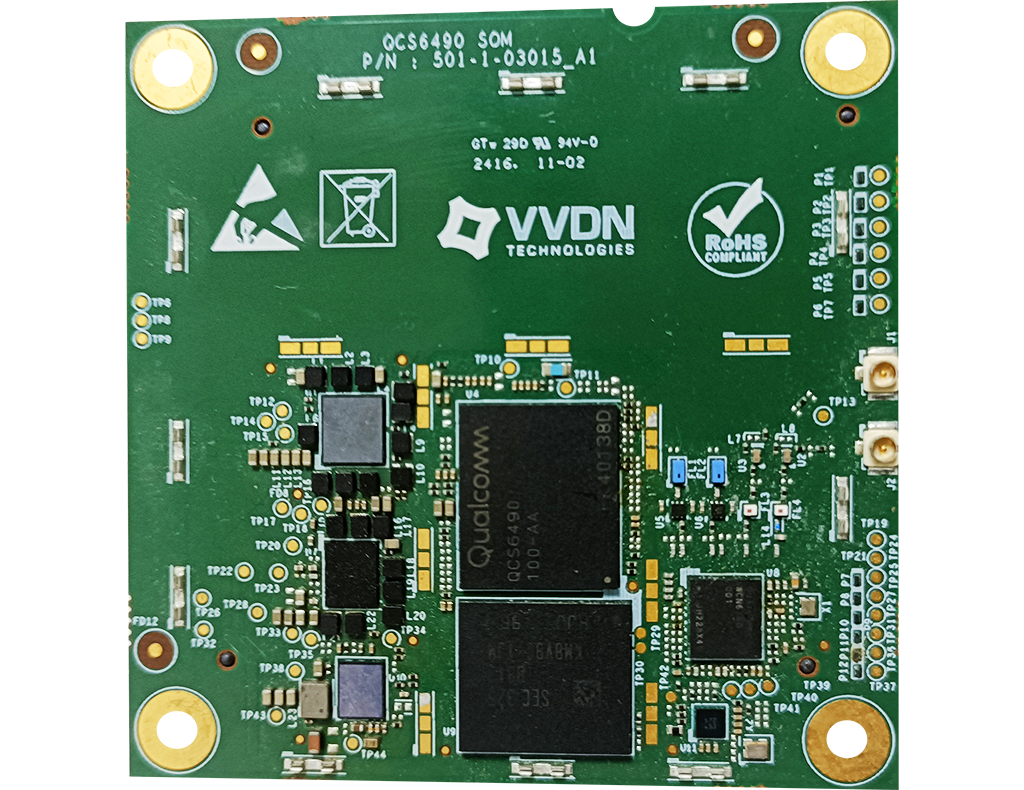

VVDN is designing, and developing SOM based on Qualcomm® Snapdragon™ SoC QCS6490. The SOM supports rich interfaces for connectivity including Wi-Fi 6 (802.11ax) & Bluetooth 5.2 and other rich peripherals including 5X4 lane MIPI CSI for cameras, 4 lane MIPI DSI for display, USB3.1 ,USB 2.0 etc.

The SOM provides rich hardware interfaces and software SDKs for building quick prototypes and validation. It is ideal for developing various industrial and commercial IoT applications sincluding Digital Signage, Retail, Smart Warehousing,Service Robot, Rugged Handheld and tablets, etc.

TECHNICAL SPECIFICATIONS:

Platform
  • Snapdragon™ QCS6490
CPU
  • Qualcomm® Kryo™ 670 CPU
GPU
  • Adreno™ GPU 643, Adreno 633 VPU, Adreno DPU 1075
Memory
  • 4GB LPDDR5+64GB eMMC
Connectivity
  • WLAN: Wi-Fi 6 (802.11ax)
  • Bluetooth® 5.2
Camera Interfaces
  • MIPI-CSI: 5x 4-lane CSIs (4/4/4/4/4 ) support with ,64 MP / 36 + 22 MP / 3x22 MP at 30fps ZSL ,192 MP non-ZSL
Display Interfaces
  • MIPI-DSI: One 4-lane DSI D-PHY
  • Display port
Video Performance
  • Up to 4K30 encode for H.264/H.265
  • Up to 4K60 decode for H.264/H.265/VP9
Other Interfaces
  • PCIe ,USB3.1 Type C ,USB 2.0 , SDC,UART,DMIC input, GIPOs and I3C
OS
  • Linux / Android

TARGETED APPLICATIONS

Smart Camera
Digital Signage
Connected Healthcare
Retail POS
Smart Retail
Transportation & Logistics
Digital Signage
Smart Warehousing
Fleet Management
Service Robot
AI Connected Cameras
Rugged Handheld
