Overview

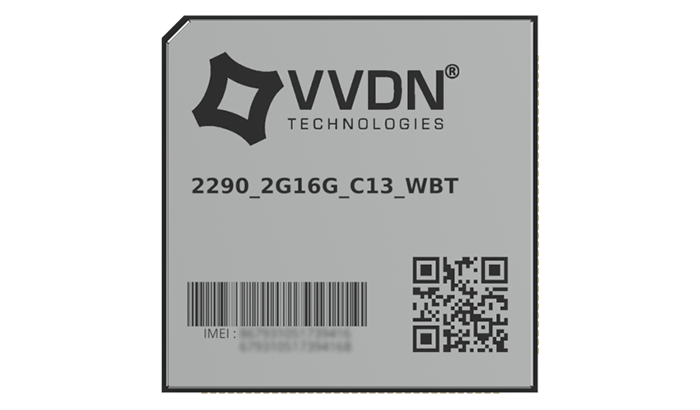

VVDN-QCM2290/QCS220 SOM, designed and developed by VVDN is based on Qualcomm® Snapdragon™ QCM2290/QCS2290 platform.

The system on module (SoM) comes with an Android 12-based operating system and supports rich I/O interfaces including MIPI-CSI, MIPI-DSI, USB, SD card, GPIO, JTAG, to connect LCD panels, and camera modules, for the development of vision intelligent IoT applications.

The SOM comes with integrated Wi-Fi: IEEE 802.11 a/b/g/n/ac, Bluetooth 5.0 and FM via Qualcomm WCN3950 chip set along with GNSS and Cellular Connectivity by Qualcomm WTR3925 chip.

The system on module offers tight system integration and optimization for superior performance and power management features make it the best to facilitate a cost effective and efficient for an embedded system application including two wheelers digital instrument cluster, body worn camera, connected camera, digital signage, control panels/industrial panels, retail PoS, video doorbells, and dash camera, etc.

TECHNICAL SPECIFICATIONS:

Platform
  • Snapdragon™ QCM2290 / QCS2290
CPU
  • Quad-core Arm Cortex-A53 ,64-bit , 2.0GHz
GPU
  • Qualcomm® Adreno™ 702
Memory
  • 2GB LPDDR4x,16GB eMMC
Connectivity
  • LTE :CAT13 B1,B3,B5,B7,B8,B28,B38,B40,B41**
  • Wi-Fi : IEEE 802.11 a/b/g/n/ac
  • Bluetooth 5.0
  • GNSS L1/L5**
  • FM
Camera Interfaces
  • MIPI-CSI: Two 4-lane CSIs (4/4 or 4/2/1) support with 2x ISP (13 MP + 13 MP or 25 MP) at 30 fps ZSL
Display Interfaces
  • MIPI-DSI: One 4-lane DSI D-PHY with HD+(720 × 1680)@60fps Support
Video Performance
  • Encode : 1080p30 8-bit HEVC (H.265) 1080p30 8-bit H.264
  • Decode : 1080p30 8-bit H.264 1080p30 8-bit HEVC (H.265), VP9
Other Interfaces
  • I2C x9, Headset , USB3.1, SDC, UIM x2, UART x9, PWM x9, Mic input x2, SPI x7, MI2S x4, GPIOs, JTAG, I3C x3*
Dimensions
  • 42.5mm x42.5mm
Package

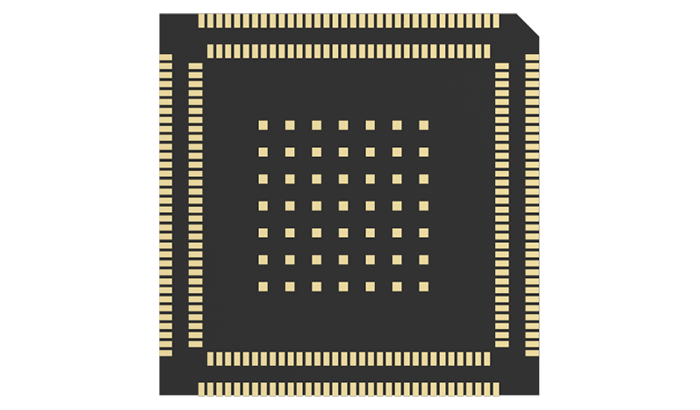

  • LCC+LGA Package
OS
  • Android 12

*The interfaces mentioned are multiplexed, all the interfaces may not be available simultaneously.
**Available only in QCM2290

TARGETED APPLICATIONS

Smart Camera
Digital Instrument Cluster
Connected Healthcare
Connected Camera
Smart Retail
Body Worn Camera
Digital Signage
Digital Signage
Fleet Management
Control Panels/ Industrial Panels
AI Connected Cameras
Retail PoS
Smart city/Traffic
Video Doorbell
video conferencing
Dash Camera
