Overview

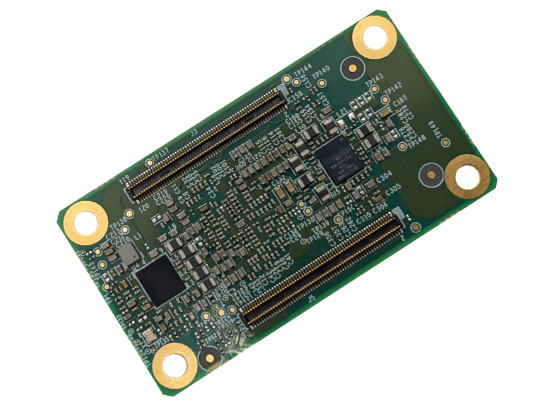

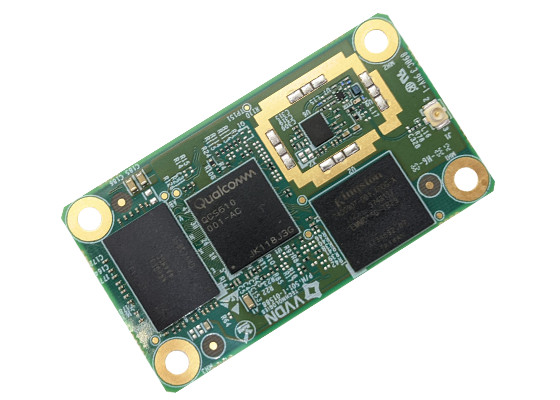

VVDN QCS610 system on module is a compact and powerful solution based on Qualcomm® QCS610 SoC, Qualcomm® Kryo™ 460 CPU, and Qualcomm® Adreno™ GPU 612 for advanced visual intelligence applications. The Module offers multiple connectivity options with integrated Wi-Fi IEEE802.11 b/a/n/ac 2.4/5Ghz via Qualcomm® WCN 3980 and Bluetooth 5.0. The system is intended for connecting camera intelligence applications such as 180-degree dual-camera stitching, advanced tracking algorithms, video conferencing, etc.

VVDN also offers a VVDN QCS 610 development kit comprising of an open frame carrier board exposing rich I/O interfaces for quick prototyping of camera applications.

Highlighted Features:

  • High-performance IoT System-on-Chip (SoC)
  • Advanced ISP, machine learning, sensor processing, and voice control
  • High performance computing
  • lower latency
  • Enhanced privacy

SoM – Qualcomm® QCS610/QCS410 based development kit comprises of:

Technical Specifications

Processor
  • Qualcomm® QCS 610
CPU Qualcomm® Kryo™ 460 CPU
  • Kryo Gold: Dual High-Performance Cores 2.2 GHz
  • Kryo Silver: Hexa Low-Power Cores 1.8 GHz
GPU
  • Qualcomm® Adreno™ GPU 612
Display Interface
  • 1x 4-lane MIPI DSI D-PHY 1.2, up to 1920 x 1080p at 60 fps
Camera Interface
  • 3x 4-lane MIPI CSI
Memory
  • 4GB LPDDR4x
Flash
  • 16GBeMMC
Video Performance
  • Encode: 4K30 8-bit HEVC
  • Decode: 4K30 10-bit: HEVC/VP9
Wi-Fi
  • IEEE802.11 b/a/n/ac 2.4/5Ghz (WCN3980)
Bluetooth
  • Bluetooth 5.0
I/O Interface
  • 2x120 pin board to board connector
  • 2 USB ports: 1x USB3.1 with support for Type-C + 1x USB2.0
  • Ethernet RGMII interface, 4-bit SD 3.0, UART, I2C, SPI, configurable GPIOs
OS
  • Linux
Operating Temperature
  • -25℃~85℃
Form Factor
  • L 55mm x W 30.5mm x H 3.39 mm (Without RF shield), 5.19 mm (With RF shield)

Targeted Applications

QCS 610 SoM's compact size and features make it the best to facilitate a cost-effective and efficient system in which next-gen camera modules can be interfaced for various AI-based applications:

Employees
Security Surveillance
Applications
Design
Smart Retail
Applications
Manufacturing
Smart city/Traffic
applications
Countries Global
Video Conferencing
system
Years of R&D Experience
Ai Connected
Cameras
Countries Global
Edge AI Computing
Platforms
Countries Global
360° Panoramic
Cameras
Countries Global
Dash
Cameras
Countries Global
Driver Monitoring
Systems (DMS)
