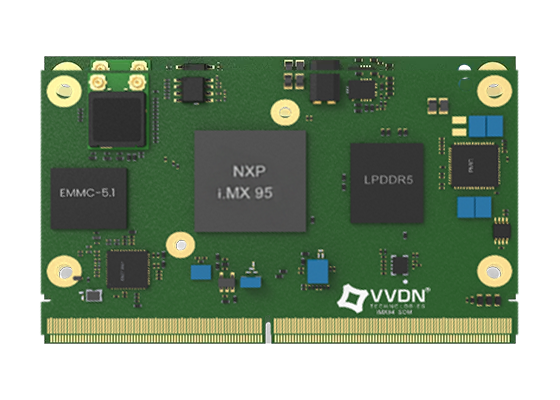

The VVDN i.MX 95 System-on-Module (SoM) is a compact, industrial-grade embedded computing platform designed to deliver high-performance processing, real-time control, and advanced connectivity for next-generation industrial and smart applications.
Powered by the NXP i.MX 95 applications processor, the SoM integrates high-efficiency Arm® Cortex®-A cores along with real-time Cortex®-M cores, enabling a powerful combination of application processing and deterministic control. It supports AI/ML acceleration, advanced multimedia capabilities, and secure edge computing, making it ideal for intelligent industrial systems.
Optimized for industrial automation, smart infrastructure, robotics, and edge AI applications, the i.MX 95 SoM provides enhanced performance, low latency, long-term reliability, and scalability in a compact and robust SMARC-compliant form factor.
| Category | Specification |
|---|---|
| Processor | NXP i.MX 95 Applications Processor |
| Architecture | Multi-core ARM-based SoC |
| Operating System | Linux (Yocto) |
| Memory | 32-bit LPDDR5, 4GB / 8GB / 16 GB |
| Storage | eMMC 5.1 Flash, 32GB to 128GB |
| Wireless |
|
| High Speed Interfaces |
|
| Low Speed Interfaces |
|
| Industrial Protocols | Modbus, Wired/Wireless HART, EtherNet/IP, BACnet, PROFIBUS and PROFINET, OPC UA |
| IoT Connectivity Protocols | MQTT, UDP, TCP/IP, FTP, Lightweight M2M (LwM2M), HTTPS |
| Dimensions | SMARC Standard (82 mm × 50 mm) |
| Operating Temperature | -40°C to +85°C |

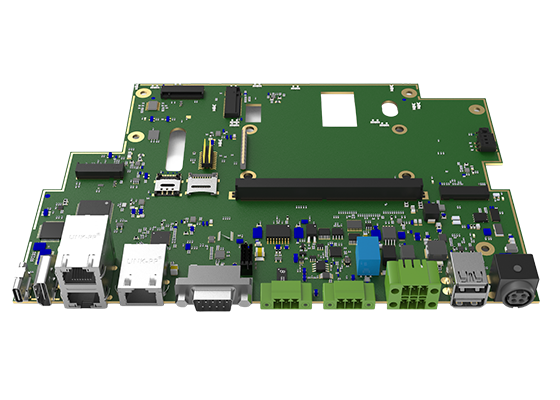

| Category | Specification |
|---|---|
| SOM Compatibility | Compatible with all SMARC form factor SoM modules |
| Extendable NPU Capability | Supports M.2 Key-M (PCIe Gen3 ×1 lane) AI accelerators for enhanced AI processing |
| Extendable Memory | Pluggable M.2 Key-M SSD slot (PCIe Gen3 ×1 lane) |
| Extendable Wireless Connectivity 1 | Supports M.2 Key-B 5G / 4G cellular modems (USB 3.2 Gen1) |
| Extendable Wireless Connectivity 2 |
|
| Display Port | HDMI 1.4b ×1 |
| External Industrial Port (High Speed) |
|
| External Industrial Ports (Low Speed) |
|
| External Bus Interfaces |
|
| Industrial Protocols | Modbus, Wired/Wireless HART, EtherNet/IP, BACnet, PROFIBUS and PROFINET, OPC UA |
| IoT Connectivity Protocols | MQTT, UDP, TCP/IP, FTP, Lightweight M2M (LwM2M), HTTPS |
| Input Power | 12V / 100 W, 4-pin Industrial DIN Connector |
| Dimensions | 215 × 146 × 1.6 mm |
| Operating Temperature | -40°C to +85°C |

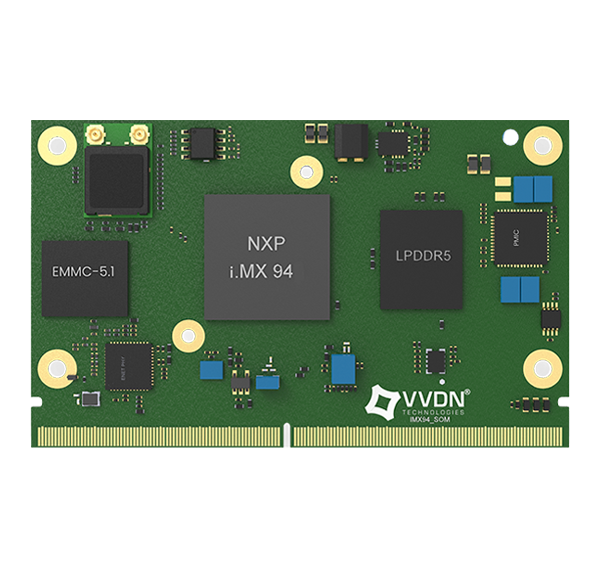

VVDN i.MX 94 applications processor System-on-Module (SoM) is a compact, industrial-grade embedded computing platform designed to enable deterministic real-time control, secure edge intelligence and mission-critical industrial automation.
