Overview

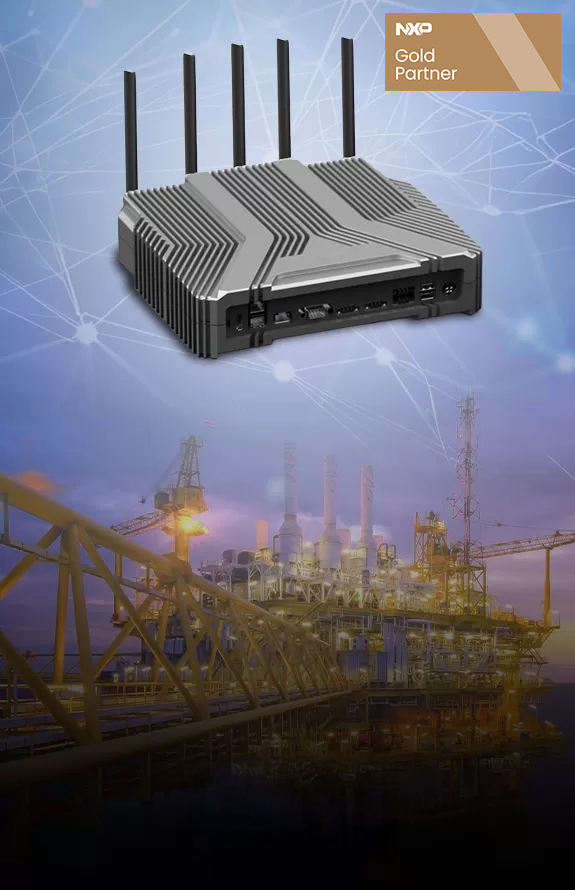

The VVDN Industrial Edge Gateway is a high-performance platform designed, developed, and manufactured by VVDN Technologies, powered by the latest NXP i.MX 94/95 processors. It is engineered for real-time data processing, autonomous control, and deterministic operations at the network edge.

The gateway is targeted for industrial automation, robotics, machine vision, and smart mobility applications where low latency, high reliability, and strong security are critical. Enabling on-device data processing and analytics minimizes cloud dependency, reduces bandwidth usage, and ensures faster system response times.

Built on a System-on-Module (SoM) + Carrier Board architecture, the platform offers high design flexibility and faster customization. The carrier board features an M.2 expansion interface, enabling integration of additional AI accelerators or NPUs to support compute-intensive edge AI workloads.

Key Features:

  • Scalable Edge Intelligence: Optional ARA-2 M.2 add-on NPU ( up to 40-TOPS) to handle demanding AI workloads, complex machine learning models, and extensive on-device analytics, significantly reducing cloud dependency.
  • Industrial-Optimized Design: Purpose-built and tuned for industrial automation and control environments.
  • Industrial Protocol Support: Supports key industrial communication protocols, including CAN and Modbus (RTU/TCP) for reliable, real-time data exchange in automation and control systems.

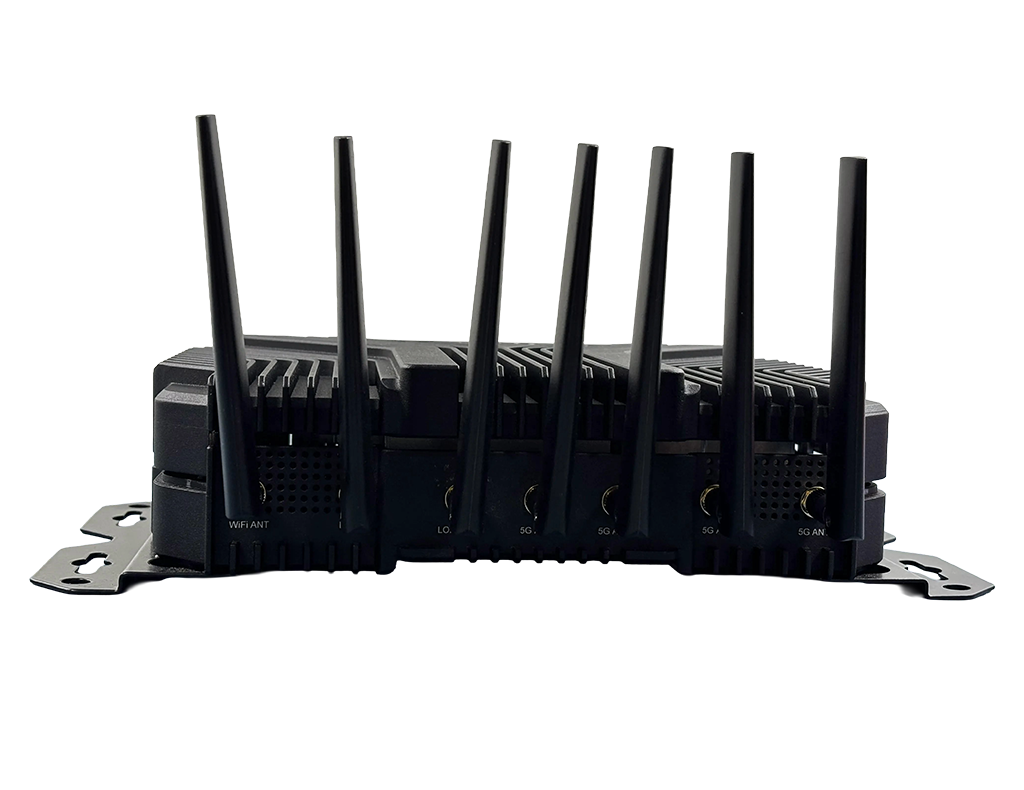

  • Interfaces & Connectivity: Multiple wired and wireless options, including Wi-Fi, Bluetooth (BLE), and LTE/5G enabling flexible deployment.
  • Security & Safety: Utilizes EdgeLock® advanced hardware security and is designed with functional safety readiness to protect critical data and ensure reliable operation.
  • Versatile Platform: Suitable for industrial, automotive and other mission-critical edge deployments.

Technical Specifications

TYPE DESCRIPTION
Platform i.MX 95 from NXP semi
  • 6 x Arm Cortex-A55, up to 1.8 GHz
  • 4 x Arm Cortex-A55, up to 1.8 GHz
  • 1 x Arm Cortex-M33, up to 333 MHz
  • 1 x Arm Cortex-M7, up to 800 MHz
  • NPU with 2 TOPS
 i.MX 94 from NXP semi
  • Up to 4 x Arm Cortex-A55, up to 1.7 GHz
  • 1 x Arm Cortex-M33, up to 300 MHz
  • 1 x Arm Cortex-M33, up to 333 MHz
  • 2 x Cortex-M7, up to 800 MHz
  • NPU with 0.5 TOPS
Memory
  • 32-bit LPDDR5 4 GB/ 8 GB
Storage
  • eMMC 5.1 32 GB to 128 GB
  • uSD Card Slot
  • M.2 Slot for NVMe SSD (via PCIe Gen3)

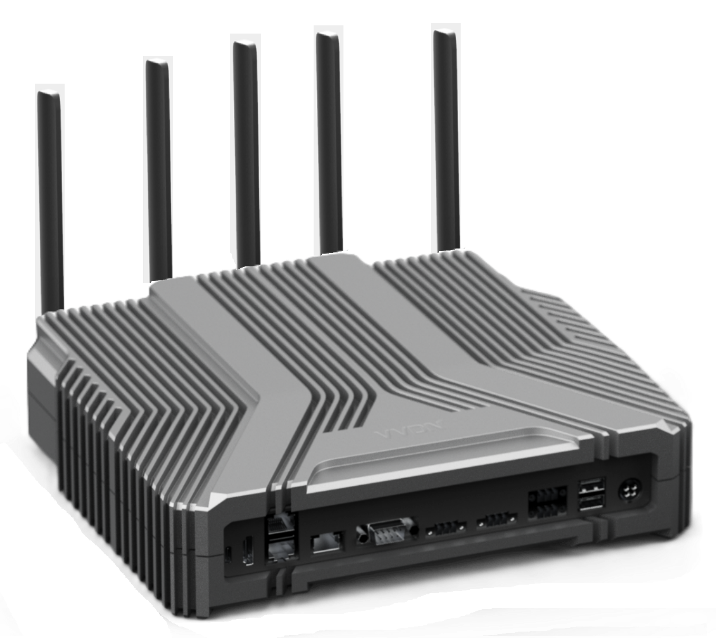

Interfaces
  • Ethernet1: 5G/2.5G/1G/100M/10M x 1
  • Ethernet2: 1G/100M/10M x 2
  • Ethernet 1: 2.5G/1G/100M/10M with TSN x 1
  • Ethernet 2: 1G/100M/10M with TSN x 2
  • CAN-FD x 2, RS232 x 1, RS485 x 1, USB 3.0 x 1, USB 2.0 x 1, HDMI 1.4b Port x 1, Wi-Fi 6E, BLE
Add-On Slot 1
  • M.2 Slot for LTE/5G Cellular Module (via USB3.0)
Add-On Slot 2
  • M.2 Slot for AI 40-TOPS NPU Accelerator Module (via PCIe Gen3)
Expansion Header
  • SPI x1 with Two Chip Select
  • I2C x2 with 400 KHz
  • UART x1
  • HART x1
  • GPIOs
  • ADC Inputs

Note: Wireless LoRA/Zigbee/HART Module can be added in the Header

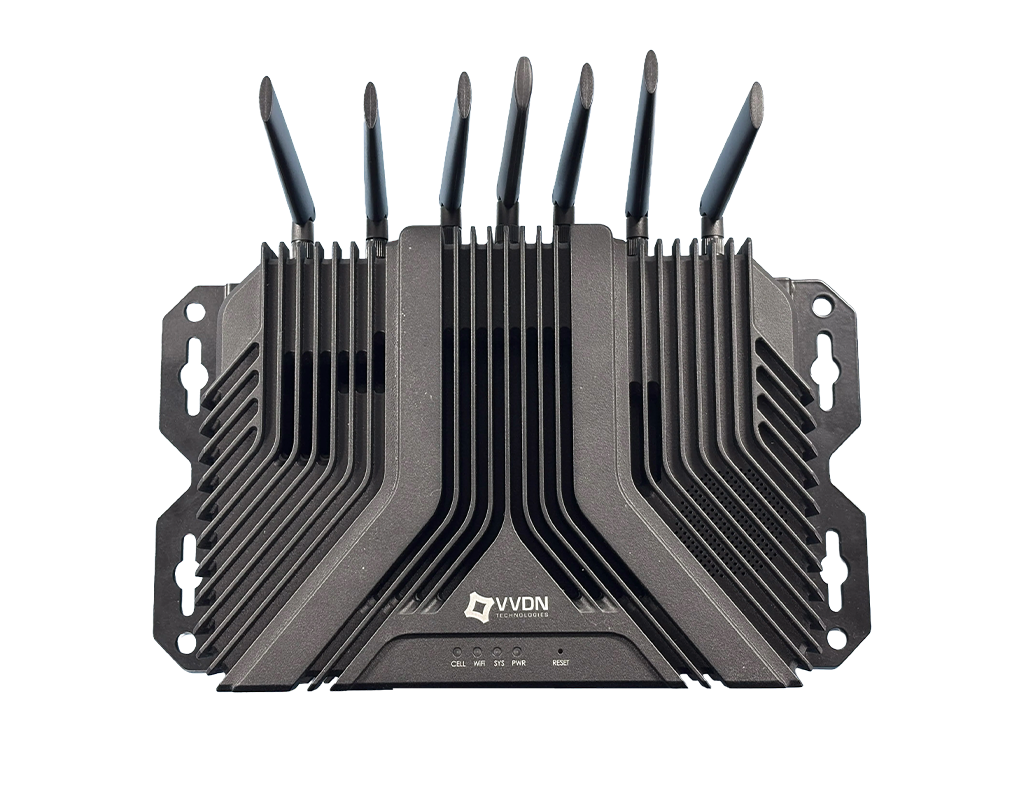

Status Indicator
  • PWR, System, Wireless Network Status
Power
  • 12 VDC
Operating System
  • Linux

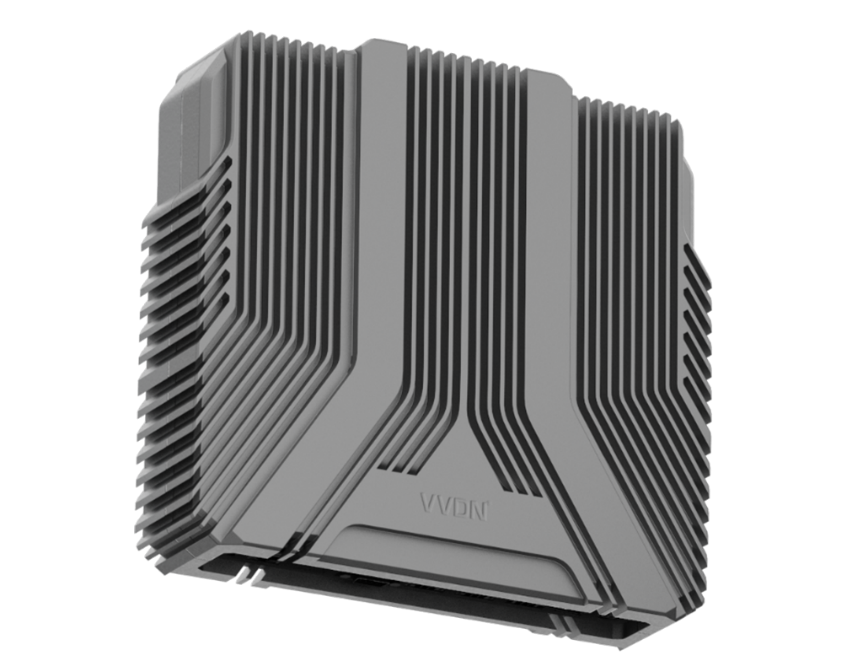

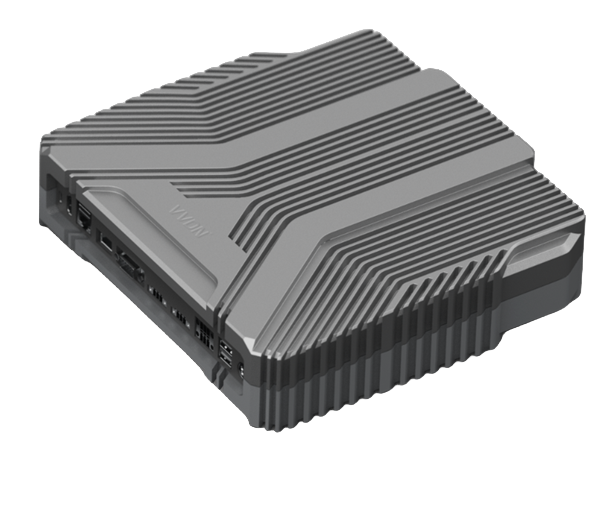

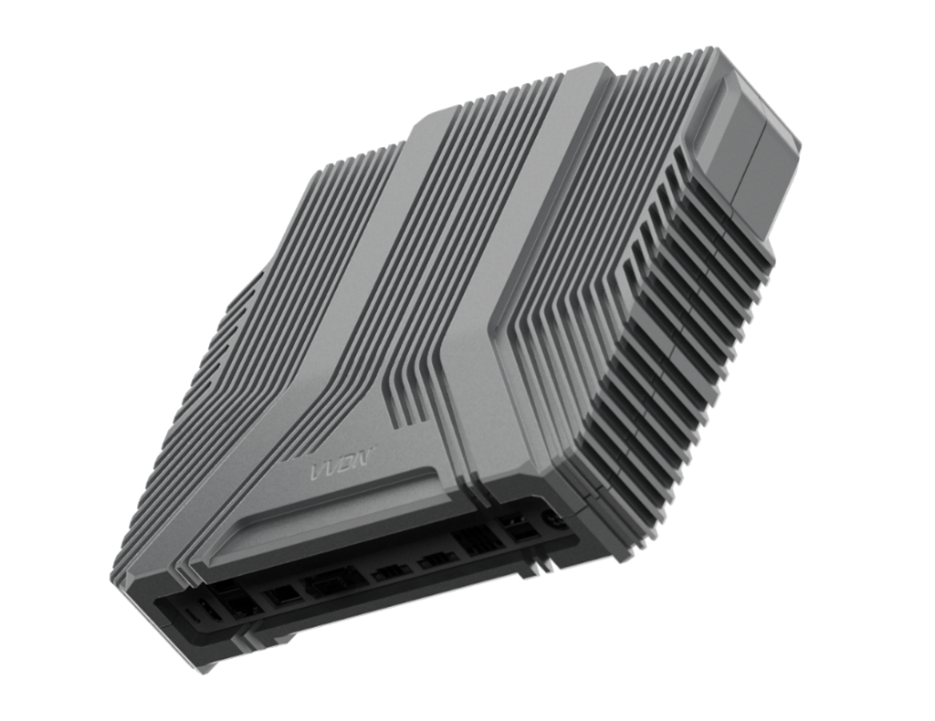

Enclosure
  • Dimension: 185 x 160 x 44.45 mm
  • Material: Sheet Metal Case

Targeted Applications

The VVDN Industrial Edge Gateway is a high-performance platform designed, developed, and manufactured by VVDN Technologies, powered by the latest NXP i.MX 94/95 processors.

factory automation
factory automation
Robotics
Robotics
Machine Vision
Machine Vision
Smart Mobility
Smart Mobility
Edge AI
Edge AI

OTHER OFFERINGS ON NXP

icon
VVDN – NXP – i.MX 94 SoM
icon

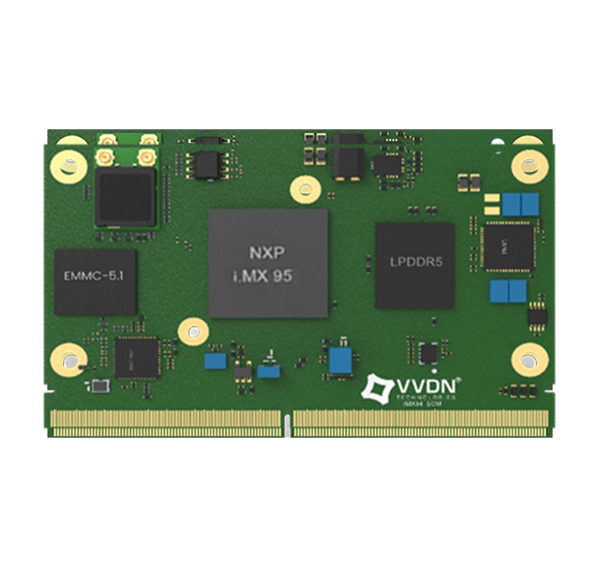

VVDN – NXP – i.MX 95 SoM
