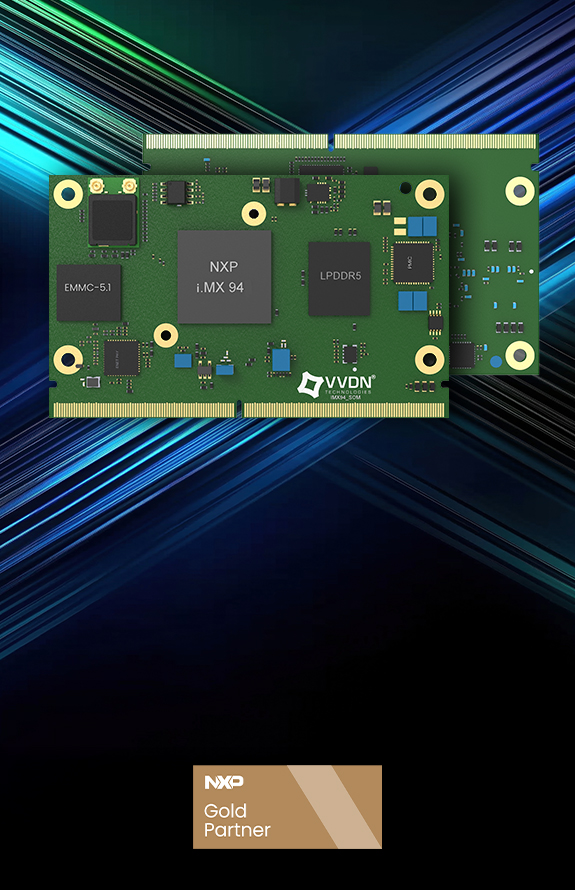

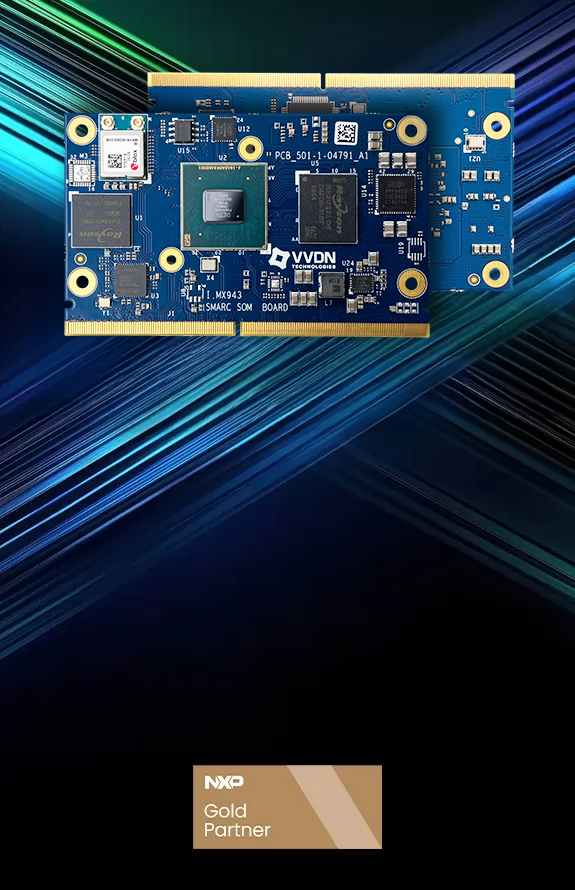

The VVDN i.MX 94 applications processor System-on-Module (SoM) is a compact, industrial-grade embedded computing platform designed to enable deterministic real-time control, secure edge intelligence and mission-critical industrial automation.
Powered by NXP’s i.MX 94 applications processor multi-core processor, the SoM combines high-performance application processing, real-time MCU-class control, Time-Sensitive Networking (TSN), and rich industrial connectivity in a robust and space-efficient form factor.
Optimized for industrial gateways, PLCs, factory automation systems, robotics controllers, and smart control applications, the i.MX 94 applications processor SoM delivers high reliability, ultra-low latency, and long-term industrial scalability for demanding environments.
The SoM can be paired with VVDN-designed universal SMARC or custom carrier boards, enabling rapid product development and a seamless transition to mass production.
| TYPE | DESCRIPTION | |
|---|---|---|
| Processor | NXP i.MX 94 applications processor | |
| Architecture | Multi-core ARM-based SoC | |
| Operating System | Linux (Yocto) | |
| Memory | 32-bit LPDDR5, 4 GB / 8 GB / 16 GB | |
| Storage | eMMC 5.1 Flash, 32GB to 128GB SD / SDIO / MMC ×1 | |
| Wireless |
|
|
| High Speed Interfaces |
|
|
| Low Speed Interfaces |
|
|
| Industrial protocols |
|
|
| IoT Connectivity Protocols |
|
|
| Dimensions |
|
|
| Operating Temperature |
|
|

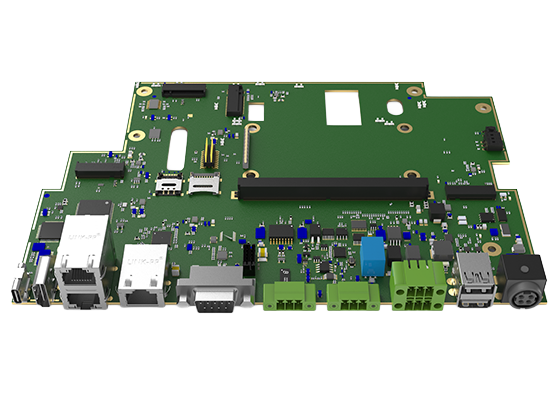

| Category | Specification |
|---|---|
| SOM Compatibility | Compatible with all SMARC form factor SoM modules |
| Extendable NPU Capability | Supports M.2 Key-M (PCIe Gen3 ×1 lane) AI accelerators for enhanced AI processing |
| Extendable Memory | Pluggable M.2 Key-M SSD slot (PCIe Gen3 ×1 lane) |
| Extendable Wireless Connectivity 1 | Supports M.2 Key-B 5G / 4G cellular modems (USB 3.2 Gen1) |
| Extendable Wireless Connectivity 2 | Supports industrial-grade LoRa modules in M.2 Key-A form factor (USB 2.0 Host ×1, SPI ×1) |
| Display Port | HDMI 1.4b ×1 |
| External Industrial Port (High Speed) |
|
| External Industrial Ports (Low Speed) |
|
| External Bus Interfaces |
|
| Industrial Protocols | Modbus, Wired/Wireless HART, EtherNet/IP, BACnet, PROFIBUS and PROFINET, OPC UA |
| IoT Connectivity Protocols | MQTT, UDP, TCP/IP, FTP, Lightweight M2M (LwM2M), HTTPS |
| Input Power | 12V / 100 W, 4-pin Industrial DIN Connector |
| Dimensions | 215 × 146 × 1.6 mm |
| Operating Temperature | -40°C to +85°C |
VVDN i.MX 94 applications processor System-on-Module (SoM) is a compact, industrial-grade embedded computing platform designed to enable deterministic real-time control, secure edge intelligence and mission-critical industrial automation.
