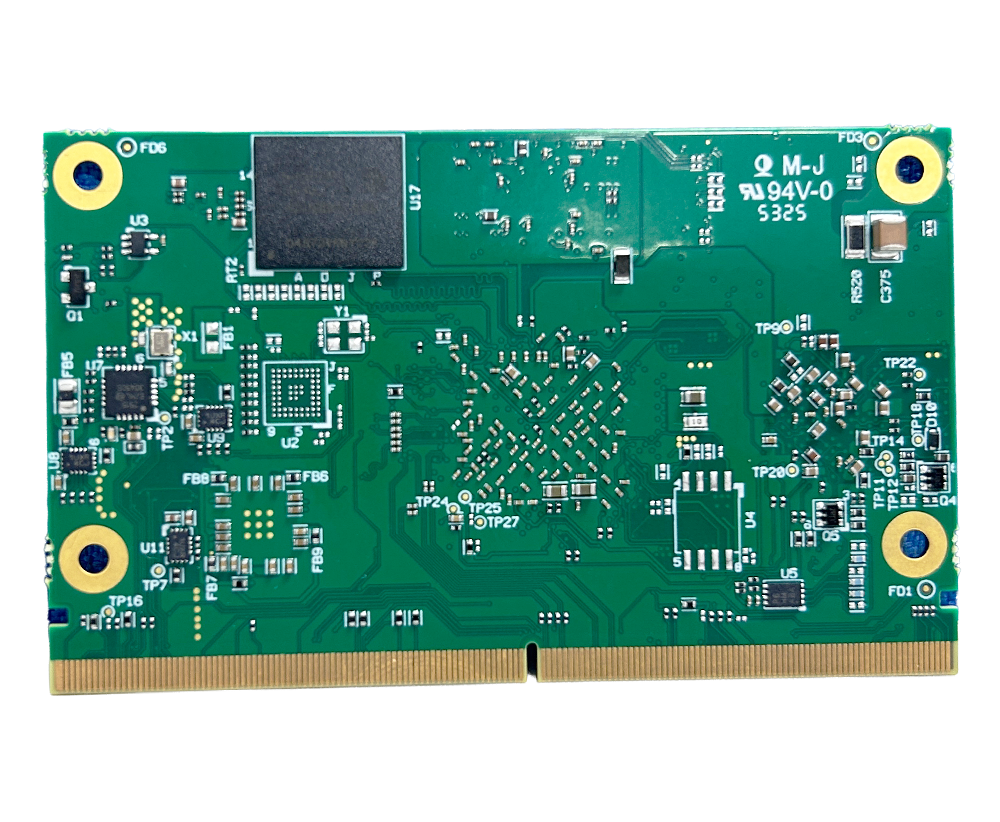

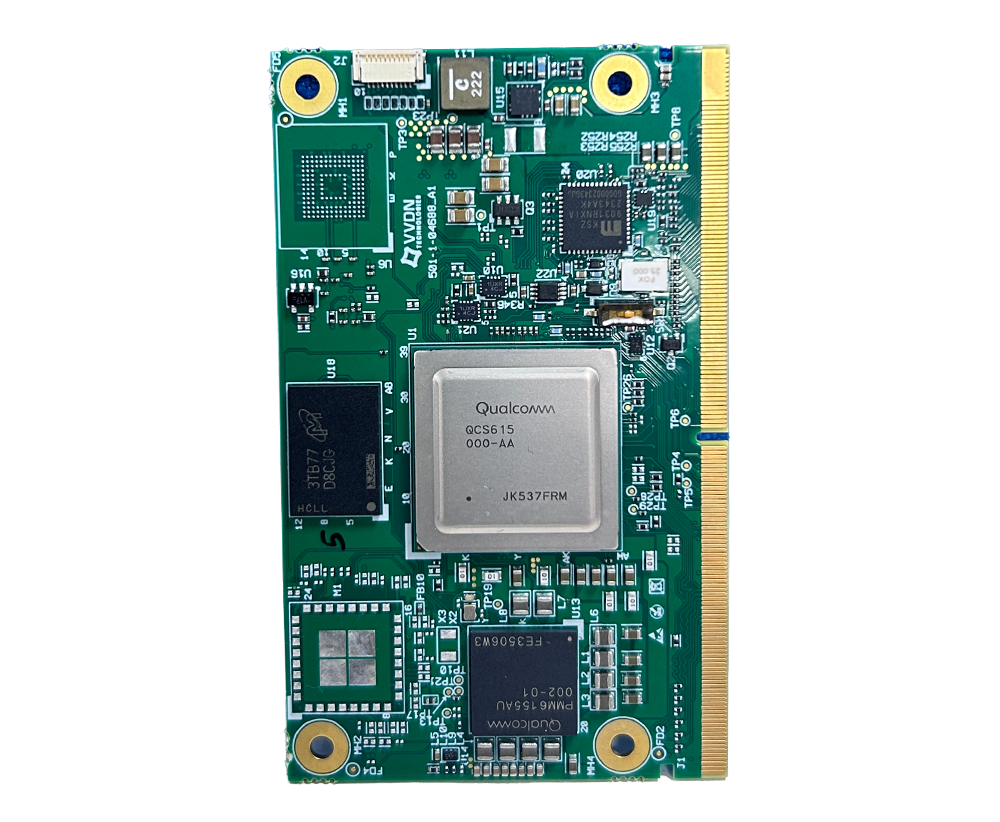

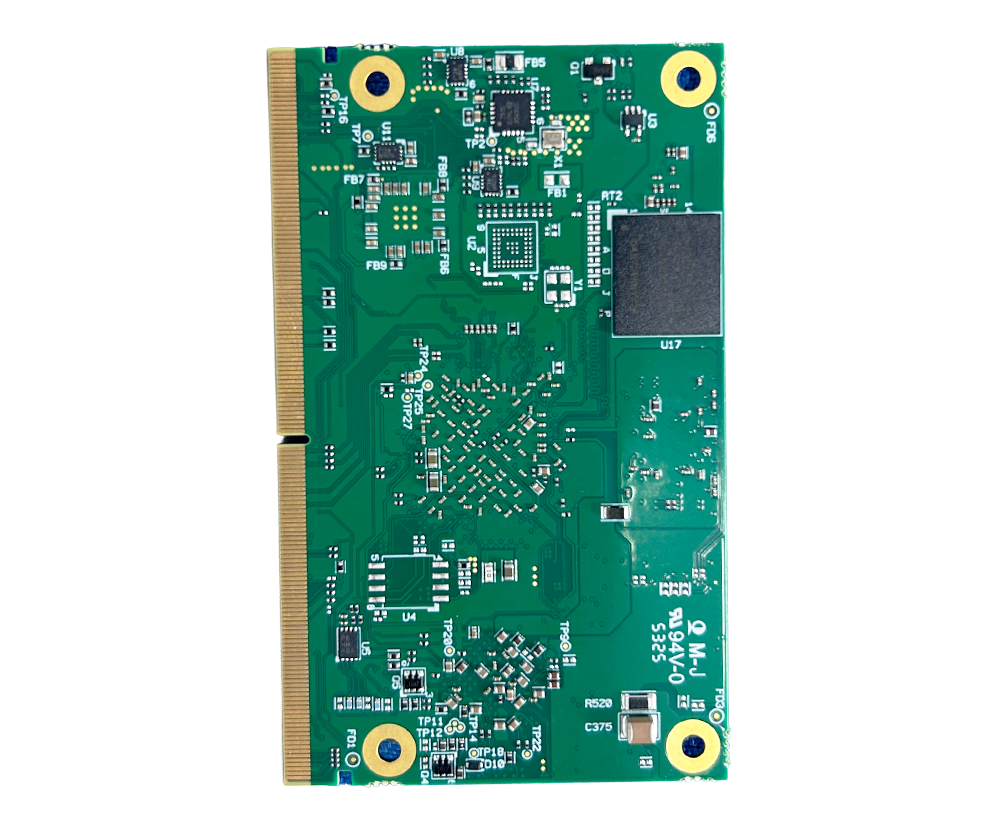

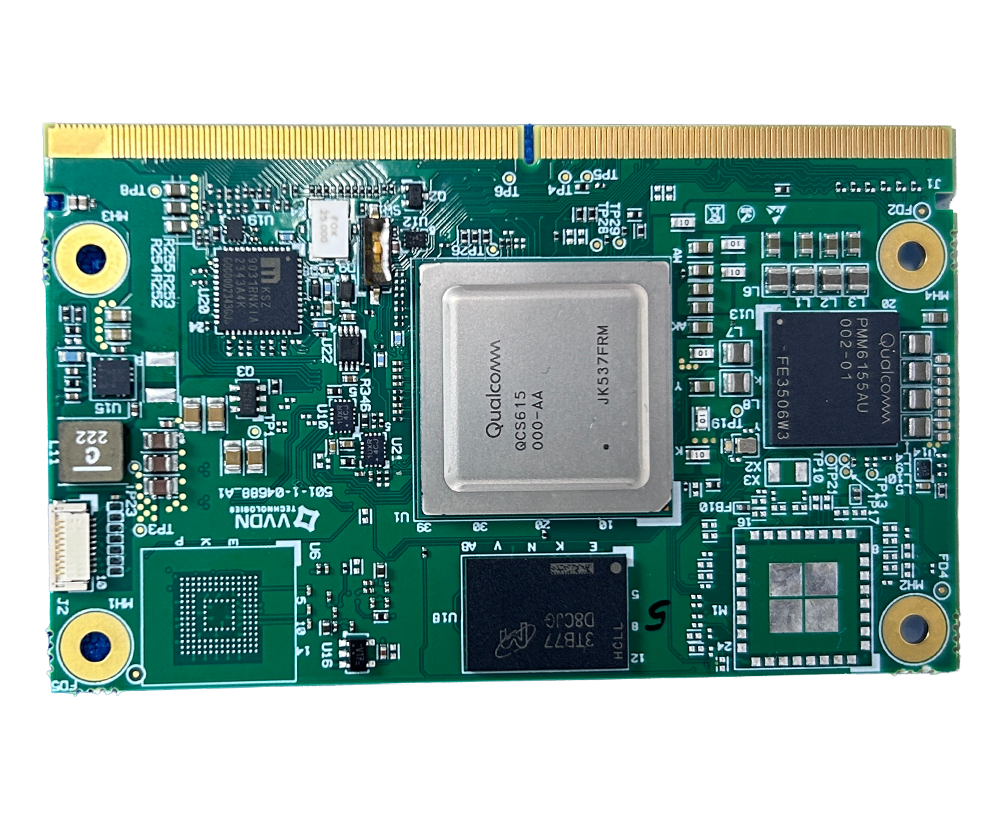

VVDN has designed and developed a SMARC™ 2.2-compliant System-on-Module (SoM) based on the Qualcomm Dragonwing(TM) IQ-615 processor, optimized for industrial edge gateways, robotics and Controller, machine vision systems, HMIs and Healthcare devices.

The module integrates high-performance ARM Cortex-A76 and Cortex-A55 cores, AI acceleration, LPDDR4x memory and up to 256 GB eMMC, along with enterprise-grade security. A rich set of high-speed interfaces, including PCIe, USB, dual Gigabit Ethernet, display and camera connectivity, combined with Yocto Linux BSP support, enables fast time-to-market, scalable product designs and seamless integration within the SMARC ecosystem.

Technical Specifications

TYPE DESCRIPTION
Platform
  • Qualcomm® Dragonwing™ IQ-615
CPU
  • Octa-core ARM
    • Dual-core Arm Cortex-A76 up to 1.9 GHz
    • Hexa-core Arm Cortex-A55 up to 1.6 GHz
AI Accelerator
  • Qualcomm Hexagon™ V66 DSP with Dual Hexagon Vector (1.1 TOPs)
Display Controlle
  • GPU : Qualcomm Adreno™
  • ISP : Spectra™ 230
  • Video Decode: Up to 4K @60fps
  • Video Encode: Up to 1K @60fps
Memory & Storage
  • RAM: Up to 8 GB LPDDR4x SDRAM 3110MT/s, eMMC
    Flash: 32 GB to 256 GB eMMC Flash and up to 256 GB UFS Flash (option)
Interfaces
  • Storage
    • 1x SDIO
  • USB
    • 1x USB 2.0
    • 1x USB 3.1
  • Serial
    • 4 x UART
  • Bus
    • 1x PCI-Express x1 Gen. 2
    • 1x I²C
    • 1x SPI
    • 1x QSPI/SPI
    • 1x CAN-FD / 2.0B (optional)
  • Display
    • MIPI-DSI Display Interface, 4 lanes, up to 1920x1200 @60fps (or)
      Dual-channel LVDS Interface, 18 or 24 bit (up to 1920x1080)
    • DP 1.4 (up to 4 Displays)
  • Network
    • 1x GigE-Port
  • Camera
    • 2× MIPI-CSI (1x 4 LANE, 1x 2 LANE)
  • Audio
    • 2× I²S
Security Devices
  • Secure Boot, Secure Debug, TrustZone, Qualcomm Trusted Execution Environment, Hardware-supported KeyStore, HDCP v1.4 and 2.2 for DisplayPort, Secure I²C and Secure SPI, AVB2.0
  • Crypto Engines: Crypto Engine v5 (CE5), DRBG/PRNG (FIPS-compliant), Inline Crypto Engine (FIPS-compliant), ICE
Cooling
  • Heatspreader/ Heatsink
OS
  • Yocto Linux
Form Factor
  • SMARC™ 2.2 Short Size
Dimension
  • 82 x 50 mm
Power Input
  • +5V +/-5%, 5V Standby, Power Consumption 4-8 W Typical
Certificates
  • UL/ CE
Miscellaneous
  • Miscellaneous Watchdog Timer for System Reset
  • RTC (optional: temperature compensated)
  • GPIO, Configurable as Input or Output
  • 64 kbit ID EEPROM on I²C bus

TARGET APPLICATIONS

Industrial Gateway

Robotics & Controller

Industrial Machine Vision
Imaging System

Industrial HMI

Healthcare Devices

Use Cases

factory automation
Industrial Automation
& Smart Factories
Robotics
Robotics
Machine Vision
Machine Vision
& Imaging System
Smart Mobility
Smart Mobility
Edge AI
Medical
& Healthcare
