Overview

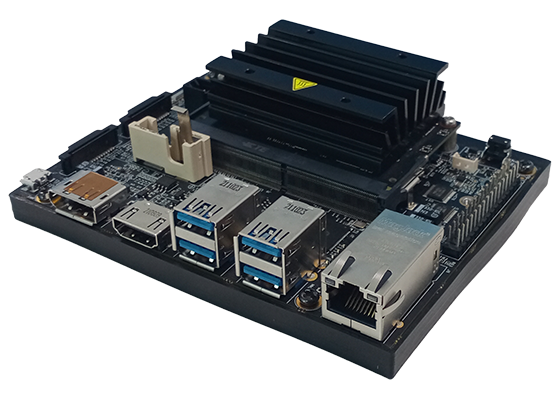

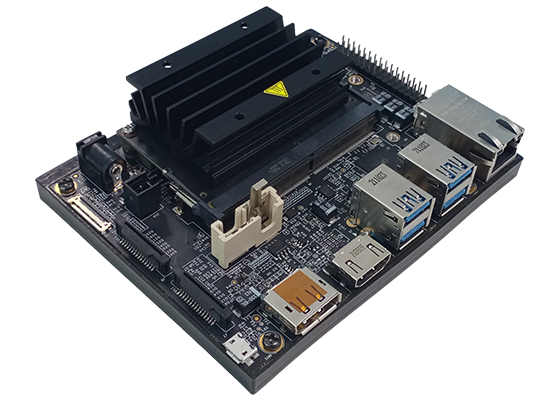

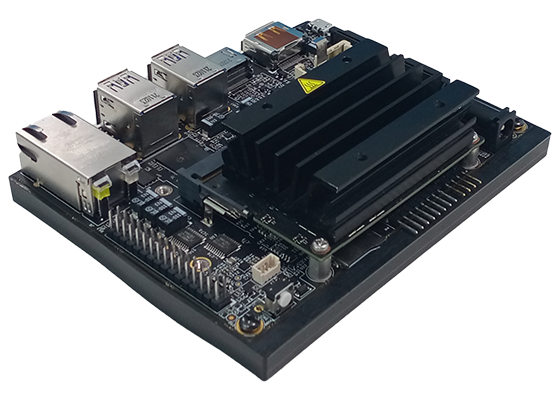

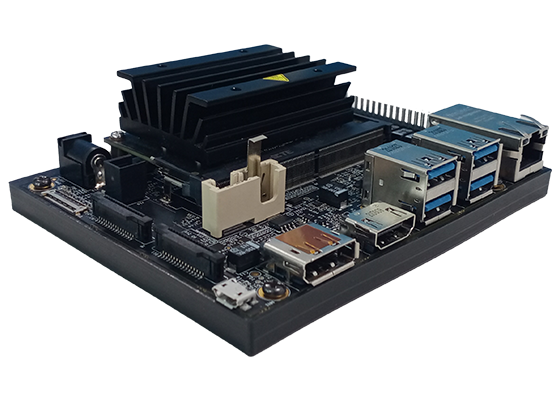

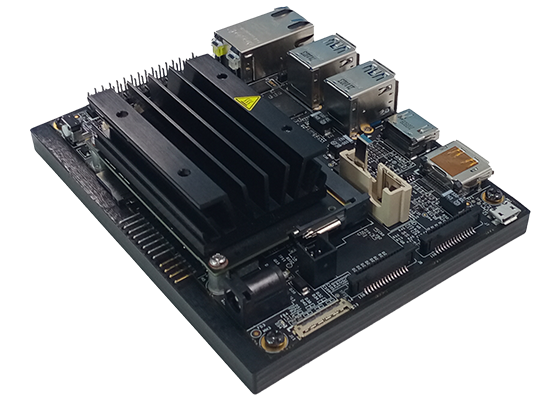

VVDN-JN-NN full system is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing. The full system includes a Jetson nano SOM along with custom carrier board developed and manufactured by VVDN.

The system can be used by the learners, developers, OEMs looking to develop smart AI products and solutions on Jetson Nano platform.

Features :

  • Production ready Nano module for advanced edge AI applications.
  • Preinstalled Jetpack system from NVIDIA
  • Supports entire NVIDIA software stack for application development and optimization
  • Easy to build, deploy, and manage AI at the edge

Technical Specifications

Features Description
GPU
  • NVIDIA Maxwell architecture with 128 NVIDIA CUDA® cores
CPU
  • Quad-core ARM Cortex-A57 MPCore processor
DL Accelerator
  • 2x NVDLA Engines
Vision Accelerator
  • 7-Way VLIW Vision Processor
Camera
  • 2x2 Lane MIPI CSI-2 DPHY
  • 1x4 Lane MIPI CSI-2 DPHY*
Memory
  • 4 GB 64-bit LPDDR4, 1600MHz 25.6 GB/s
USB
  • 4x USB 3.0, 1x USB 2.0 Micro-B
Network Connectivity
  • 1x Gigabit Ethernet
Storage
  • 16 GB eMMC 5.1
  • 1x M.2 key M for NVME (SSD)
  • SD Card slot*
Video Encode
  • 250MP/sec |1x 4K @ 30 (HEVC) |2x 1080p@ 60 (HEVC)| 4x 1080p @ 30 (HEVC) |4x 720p @ 60 (HEVC) |9x 720p @ 30 (HEVC)
Video Decode
  • 500MP/sec | 1x 4K @ 60 (HEVC)| 2x 4K @ 30 (HEVC)| 4x 1080p @ 60 (HEVC)| 8x 1080p @ 30 (HEVC)| 9x 720p @ 60 (HEVC)
Display
  • 1x HDMI 2.0
  • 1x Display port
Power Supply
  • 12V/5A
Dimensions
  • 120 mm x 90 mm (without Plastic Base)
Operating Temperature Range
  • +30 °C (With provided heatsink)
Other Interfaces
  • I2C, I2S, SPI, UART, GPIOs
*requires extra SW patch from VVDN for 4-Lane MIPI and SD card.

Downloads

Title Version Release Date
Nano Full System User Guide 1.0 01/09/2022
Title Version Release Date
Quick Start Guide 2.0 04/02/2023
Package Info BSP Release Release Date
VVDN_JN_NN_L4T32.6.1_12-JULY-2022_R_1_0_2 L4T32.6.1 03/05/2022

Target Industries

Smart AI Cameras

  • Large screen size enables Students to read notes, prepare notes, research materials and video lectures

Smart City

Smart Healthcare

Robotics

Agriculture

Smart Factory

For any query, related to full system, please write us at :

jetson@vvdntech.in
